Peb Structure Fabrication Shed

Get a Price/Quote

Product Details:

Window Material Aluminum/Steel Frame with Glass or Polycarbonate Panels
Open Style Rolling, Sliding, or Custom Doors
Insulation PUF or Glasswool (Optional)
Door Material Metal or Steel
Wall Materials Steel Sheets or Insulated Panels
Connection Bolted/Welded Connections (As per design)
Life Span 20-30 Years (Depending on maintenance and environment)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Peb Structure Fabrication Shed Price And Quantity

Minimum Order Quantity 100 Square Feet

Peb Structure Fabrication Shed Product Specifications

Life Span 20-30 Years (Depending on maintenance and environment)
Connection Bolted/Welded Connections (As per design)
Floor Load Designed as per industrial requirements (customizable)
Window Material Aluminum/Steel Frame with Glass or Polycarbonate Panels
Wall Materials Steel Sheets or Insulated Panels
Window Provided as per Design Requirement
Material Prefabricated Steel (PEB - Pre Engineered Building Steel)
Thickness Of Wall Panel 0.4mm to 1.2mm (Depends on panel type)
Door Material Metal or Steel
Window Style Sliding or Fixed
Insulation PUF or Glasswool (Optional)
Roof Material Galvanized Steel Sheets or Color Coated Metal Sheets
Floor Material Reinforced Concrete or Paved Flooring
Dimension (L*W*H) Customizable as per site requirement
Roof Live Load 0.5 - 1.5 kN/m2 (According to region & use)
Roof Dead Load 2-5 kN/m2 (Customizable as per design)
Open Style Rolling, Sliding, or Custom Doors
Earthquake Intensity Designed as per IS standards for seismic zones
Color Customizable (Standard Grey/Blue/White)
Door Wide Industrial Doors (Customization Available)
Use Industrial Sheds, Warehouses, Storage, Manufacturing Plants

Fire Resistance Fire-retardant insulation available as optional
Expansion Capability Yes, modular expansions possible
Erection Time Quick assembly, reduced construction time
Wind Resistance Designed for local wind speeds as per IS codes
Gutter & Downpipe Pre-fitted for rainwater harvesting / drainage
Corrosion Protection Hot Dip Galvanized/Primer + Paint
Design Standard IS 800/IS 816/IS 875 or relevant international codes
Frame Structure Hot rolled, cold formed, or built-up steel sections
Maintenance Minimal, periodic inspection recommended
Temperature Resistance -20C to +65C (Depending on insulation)
Coating Type Zinc/Galvalume/Color Coating as required
Foundation Type RCC Columns/Pile/Isolated Footings (Based on soil report)
Lighting Provision Skylights/Translucent Sheets and provisions for electrical fittings

Peb Structure Fabrication Shed Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Square Feet Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Discover the Exclusive Peb Structure Fabrication Shed-an excellent blend of affordability with redoubtable strength and durability. Engineered from hot rolled, cold-formed, or built-up steel, each shed is customizable in color, dimension, and floor load, ensuring a perfect fit for your unique application. With options for scarce fire-retardant insulation and minimal maintenance, these sheds stand as a lofty standard in industrial spaces. Quick erection time, superior wind and seismic resistance, expansion capability, and corrosion protection guarantee a solution that's both practical and enduring-designed for 20-30 years of service.

Wide Application Across Diverse Industries

The Peb Structure Fabrication Shed is extensively used by manufacturers, warehouse operators, and industrial plant managers seeking a rapid and efficient solution. Purpose-built for industrial-type applications, this shed is suitable for storage, manufacturing, and housing heavy equipment. Application is straightforward: the tailored frame structure is erected on-site by professionals utilizing bolted or welded connections as per design standards, ensuring a seamless fit and robust protection for your operational needs.

Reliable Supply, Transparent Pricing & Swift Delivery

Our Peb Structure Fabrication Sheds are readily available for supply across India thanks to our established network as a manufacturer, service provider, and supplier. List prices are provided upon inquiry, ensuring transparent and affordable options for any scale. Upon confirmation of order and payment terms, your customized shed is readied and handled with care, with arrival and installation typically completed within a few weeks. Each project is promptly handed over, guaranteeing minimal disruption and rapid operational kickoff.

FAQ's of Peb Structure Fabrication Shed:

Q: How is the Peb Structure Fabrication Shed constructed on-site?

A: The Peb shed is assembled on-site using bolted or welded connections, ensuring a secure and sturdy structure. Professional teams handle the swift assembly, enabling rapid project completion compared to traditional construction.

Q: What makes the Peb Fabrication Shed suitable for industrial use?

A: Designed as per leading IS and international codes, the shed offers high wind and seismic resistance, customizable floor loads, and corrosion protection. These features make it an ideal and reliable option for warehouses, manufacturing, and storage applications.

Q: When can I expect my Peb Structure Shed to be delivered and ready for use?

A: Delivery timelines typically range from a few weeks after order confirmation and payment, depending on customization. Upon arrival, the shed is efficiently erected, allowing business operations to start swiftly.

Q: Where can Peb Structure Fabrication Sheds be installed?

A: These sheds are versatile and can be installed on foundations such as RCC columns, pile, or isolated footings, making them suitable for diverse site conditions across industrial zones in India.

Q: What benefits does the optional fire-retardant insulation provide?

A: Adding fire-retardant insulation enhances the safety and temperature resistance of the shed, offering additional protection for industrial goods and equipment, especially in fire-prone environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Prefabricated Shed' category

Pre Engineered Warehouse Shed Minimum Order Quantity : 100 Dimension (L*W*H) : As per clients specification (commonly 30m x 15m x 7m) Floor Material : Reinforced Concrete or Cement Flooring Door Material : Other, Mild Steel or Galvanized Iron Window Style : Other, Fixed / Sliding Insulation : Other, Optional Rockwool or Glasswool Roof Material : Other, Prepainted Galvanized Iron (PPGI) Sheets Thickness Of Wall Panel : 0.5 mm to 0.8 mm Window : Other, Fixed Glass or Louvered Wall Materials : Other, Color Coated Steel Panels Material : Other , Mild Steel, HighStrength Steel Use : Other, Warehouse / Industrial Storage Door : Other, Single or Double Wing Industrial Door Color : Red & White (Customizable) Earthquake Intensity : Designed as per Seismic Zone Requirements Roof Live Load : 0.751.5 kN/m2 Roof Dead Load : 0.51.5 kN/m2 Open Style : Other, Rolling / Sliding Connection : Bolted Connection Life Span : 25+ Years Window Material : Other, Aluminum Frame with Toughened Glass Floor Load : 5 kN/m2 (customizable as per requirement)

Send Inquiry

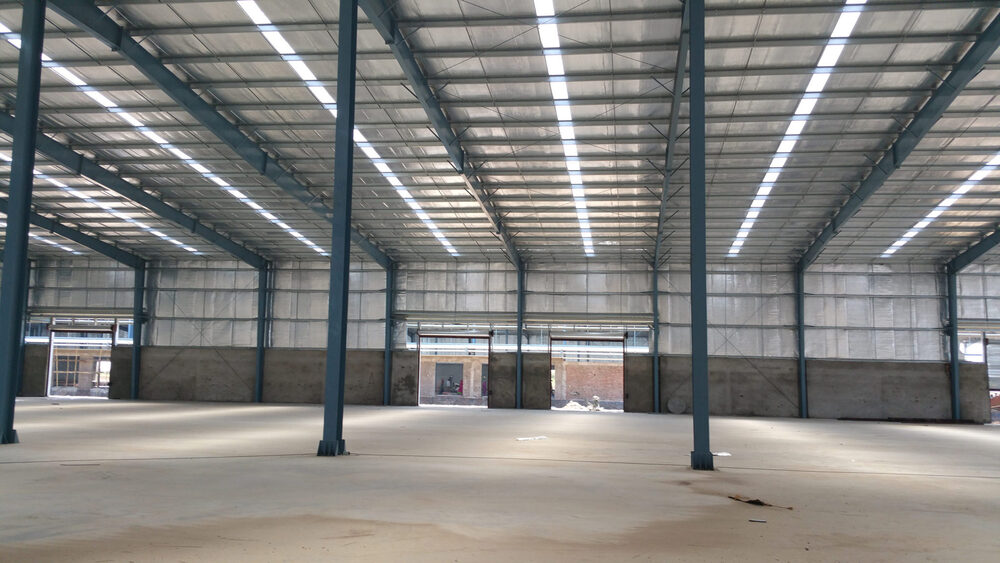

Industrial PEB Warehouse Shed Minimum Order Quantity : 100 Dimension (L*W*H) : Customized as per project; typical: 60m x 30m x 12m Floor Material : Polished concrete Door Material : Other, Metal/steel roller shutters Window Style : Other, Fixed/Louvered/Ventilators Insulation : Other, PUF/EPS insulation in roof and walls as required Roof Material : Other, Prepainted galvanized iron profile sheets Thickness Of Wall Panel : 50mm 100mm (sandwich panel) or 0.45mm 0.6mm (sheet thickness) Window : Other, Provision for natural lighting and ventilation Wall Materials : Other, Galvalume/galvanized steel sheets and insulated sandwich panels Material : Other , Preengineered steel structure (PEB) Use : Other, Industrial storage, warehousing, and logistics Door : Other, Multiple roller shutters and pedestrian doors Color : Grey, Blue, or as per requirements Earthquake Intensity : Designed for seismic zone III/IV as per IS codes Roof Live Load : 0.57 kN/m2 (IS code standards) Roof Dead Load : 0.15 0.25 kN/m2 (excluding additional equipment) Open Style : Other, Rolling/Sliding Connection : Welded and bolted steel connections Life Span : 25+ years Window Material : Other, Aluminium or uPVC with glass, fixed or louvered positions Floor Load : 510 kN/m2 (typical for warehouse operations)

Send Inquiry

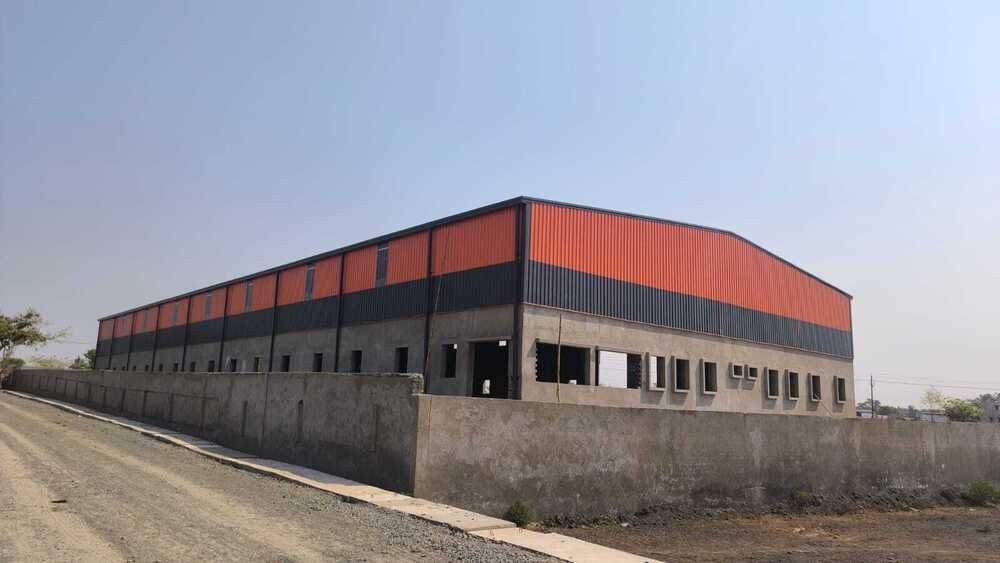

Prefabricated Steel Shed Minimum Order Quantity : 100 Dimension (L*W*H) : Customized as per requirement (example: 30m x 15m x 6m) Floor Material : Concrete Door Material : Other, Steel/Metal Window Style : Other, Sliding/Fix Insulation : Other, PUF/Glass wool Foam Available Roof Material : Other, Prepainted Galvanized Iron (PPGI) Sheets/Metal Roofing Sheets Thickness Of Wall Panel : 50100 mm (customizable) Window : Other, Fixed/Sliding Wall Materials : Other, Prefabricated metal cladding with partial brickwork masonry Material : Other , High Strength Steel Sections Use : Other, Warehouse/Factory/Industrial Storage Door : Other, Manual/Automatic Sliding or Rolling Color : Red and Grey (Customizable) Earthquake Intensity : Designed as per Seismic Zone Standards Roof Live Load : 0.57 kN/m2 Roof Dead Load : 0.200.25 kN/m2 Open Style : Other, Rolling/Openable Connection : Bolted/Welded Life Span : 2530 Years Window Material : Other, Aluminium/Steel Frame with Glass Floor Load : Designed as per requirement (typically 35 Ton/m2)
