Pre-engineered Building

Get a Price/Quote

Product Details:

Insulation PUF/EPS/Glass Wool (Optional)
Door Material Metal (Steel/Aluminum)
Connection Bolted Connection with High Tensile Bolts
Window Material Aluminum or UPVC with Glass
Wall Materials Steel Panels, Sandwich Panels, or Pre-coated GI Sheets
Open Style Sliding, Rolling, Swing
Life Span 30-50 Years
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pre-engineered Building Price And Quantity

Minimum Order Quantity 100 Square Feet

Pre-engineered Building Product Specifications

Open Style Sliding, Rolling, Swing
Window Style Fixed or Sliding (as per design)
Insulation PUF/EPS/Glass Wool (Optional)
Door Material Metal (Steel/Aluminum)
Life Span 30-50 Years
Dimension (L*W*H) As per client specification (e.g., 30m x 20m x 10m)
Color Blue, Customized as per client
Earthquake Intensity Designed as per Seismic Zone requirements (Zone II, III, IV, V)
Door Customized (Sliding/Rolling Shutter/Double Leaf)
Roof Live Load 0.57 kN/m2 or as per IS 875 Standards
Use Industrial Shed, Warehouse, Factory, Workshop, Storage Facility
Connection Bolted Connection with High Tensile Bolts
Material High Strength Steel (IS 2062/ASTM A36)
Window Material Aluminum or UPVC with Glass
Floor Load Designed as per requirement (e.g., 5-20 kN/m2)
Thickness Of Wall Panel 0.4mm to 0.7mm (Steel Panel)
Roof Dead Load 0.5-0.75 kN/m2 depending on material
Window Customized Size and Position
Roof Material Galvalume Sheet or Color Coated Sheet
Floor Material Concrete, Steel Deck
Wall Materials Steel Panels, Sandwich Panels, or Pre-coated GI Sheets

Pre-fabrication Factory Fabricated, Ready-to-Assemble at Site
Environmental Resistance UV, Rain, Humidity Resistant
Wind Resistance Designed as per IS 875 Part 3 / ASCE 7
Gutter and Downspout Provided for Roof Drainage
Frame Type Main Frame, End Frame, Crane Beam (optional)
Corrosion Resistance Hot Dip Galvanized & Pre-painted Coated
Paint Coating Epoxy Primer with PU/Paint Finish
Foundation RCC Foundation, Isolated/Pile Footings as per design
Erection Method Site Bolted for Quick Installation
Standards Followed IS 800, IS 801, MBMA
Structural System Rigid Frame with Portal Frame Action
Cladding Insulated Sandwich Panel/Single Skin Steel Sheet
Accessories Turbo Ventilators, Skylight Sheets, Louvers
Fire Resistance Optional Fire Retardant Coating Available
Maintenance Low (Periodic Checking Recommended)

Pre-engineered Building Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Square Feet Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Grab this unassailable Pre-engineered Building solution, tailored with a rigid frame and portal frame action for industrial sheds, warehouses, and workshops. Featuring potent structural systems, including main and end frames, optional crane beams, and sought-after corrosion resistance via hot dip galvanization and pre-paint coatings, it offers competitive pricing. Site bolted for quick installation, this product is engineered for lasting performance, adhering to high standards like IS 800 and MBMA. Ending soon: special pricing for ready-to-assemble, factory-fabricated, and low-maintenance construction with robust features and customization!

Applications and Features of Pre-engineered Buildings

Pre-engineered Buildings are optimized for diverse industrial applications, including factories, warehouses, workshops, and storage facilities. Their robust steel frames, customizable dimensions, and insulated sandwich panels provide flexibility and durability in challenging environments. Key features include corrosion resistance, UV protection, and wind and seismic resistance, ensuring reliability across India's varied climatic zones. Optional fire retardant coatings and multiple door/window styles enable tailored solutions, making them indispensable in modern manufacturing, logistics, and storage operations.

Sample Policy, Certifications, and Quotations

Prospective buyers can request building samples to assess quality and design before placing orders. Our sample policy ensures transparency, letting clients evaluate materials and finishes against sale price and detailed quotations. Every structure is manufactured according to IS 800, IS 801, MBMA, and other recognized industry certifications, guaranteeing robust safety and compliance standards. Take advantage of current offers and competitive pricing-ask for your customized quote today to discover the best value in pre-engineered building supply and service.

FAQ's of Pre-engineered Building:

Q: How is the pre-engineered building installed on site?

A: Our pre-engineered buildings are site bolted using high tensile bolts, ensuring quick and efficient installation. All components are factory fabricated and ready-to-assemble, minimizing construction time and disruption.

Q: What certifications and standards do these buildings meet?

A: The structures comply with IS 800, IS 801, MBMA, and are designed following IS 875 and ASCE 7 for wind and seismic resistance. This adherence ensures safety, longevity, and regulatory compliance.

Q: When should someone consider choosing a pre-engineered building?

A: A pre-engineered building is ideal when a rapid, durable, and customizable solution is needed for industrial, commercial, or storage purposes. Their flexibility and low maintenance are particularly suited for scalable operations.

Q: Where can these buildings be utilized most effectively?

A: These buildings are highly effective for industrial sheds, warehouses, factories, workshops, and storage facilities, especially in locations requiring fast installation and robust resistance to environmental conditions.

Q: What benefits come with the building's potent structural and environmental features?

A: Benefits include corrosion protection, UV and rain resistance, seismic safety, fire-resistance options, and energy efficiency through insulated cladding. These features ensure the building's durability, safety, and cost-effective performance over decades.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Prefabricated Building' category

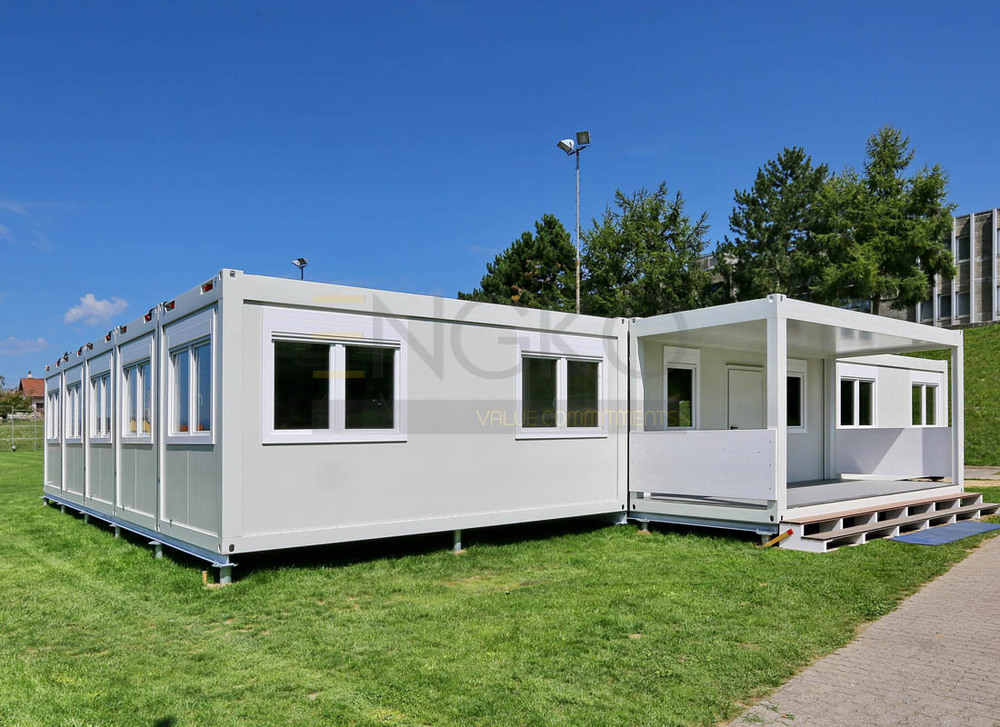

MS Pre-Fabricator Structure Building Minimum Order Quantity : 100 Window Material : Other, Aluminum or UPVC with Glass Thickness Of Wall Panel : 50mm to 100mm Floor Load : 2.03.0 kN/m2 Roof Dead Load : 4060 kg/m2 Window : Other, Glazed, Powder Coated Frame Floor Material : MS (Mild Steel) Frame with Plywood/Vitrified Tiles or Cement Board Roof Material : Other, Galvanized Iron Sheets/PUF Panel/Color Coated Sheet Wall Materials : Other, Insulated Sandwich Panels/PUF Panel/Steel Sheet Open Style : Other, Sliding/Side Open Window Style : Other, Sliding/Fixed Door Material : Other, Steel or Powder Coated Metal Door Insulation : Other, PUF/EPS/Mineral Wool Dimension (L*W*H) : As per requirement, typical module 20ft x 10ft x 8.5ft Life Span : 1525 Years Earthquake Intensity : Designed up to Seismic Zone IV/V as per IS Code Color : White/Grey (customizable) Material : Other , MS (Mild Steel) with Insulated Panels Use : Other, Office, Site Accommodation, Temporary Residence, Classroom Roof Live Load : 75100 kg/m2 Connection : Bolt Connection/Welded Joint Door : Other, Single/Double Leaf, Insulated

Send Inquiry

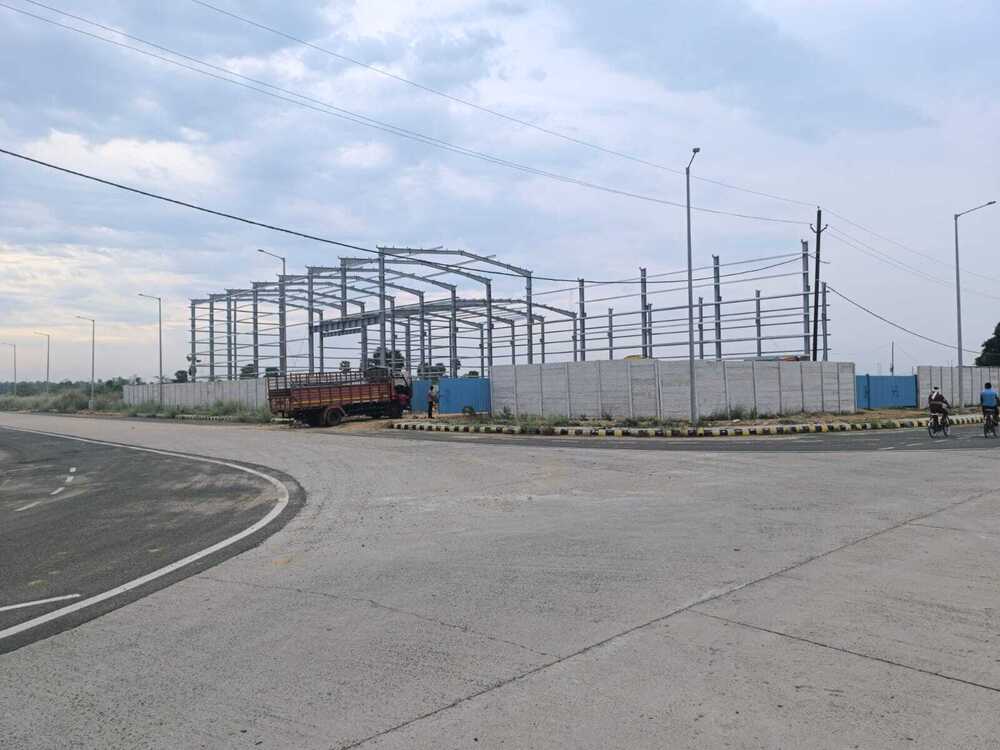

MS Pre-engineered Building Minimum Order Quantity : 100 Window Material : Other, Aluminium, UPVC or Steel Frames with Glazed Glass Thickness Of Wall Panel : 50mm 100mm (customizable) Floor Load : Designed as per project requirements, typically 5001200 kg/m2 Roof Dead Load : 0.20.5 kN/m2 Window : Other, Provided as per design and ventilation requirements Floor Material : Mild Steel (MS) or Concrete as per requirement Roof Material : Other, Galvanized Iron Sheets, Polycarbonate Sheets, or Color Coated Steel Sheets Wall Materials : Other, Prepainted Galvanized Iron Sheets, Sandwich Panels Open Style : Other, Swing, Sliding Window Style : Other, Fixed, Sliding, or Casement Door Material : Other, Mild Steel, Aluminium or Insulated Panels Insulation : Other, Rock Wool, Glass Wool, or PUF Panels as required Dimension (L*W*H) : Customizable as per project, e.g., 50m x 30m x 12m Life Span : 3050 years depending on maintenance Earthquake Intensity : Designed for Zone IIIV (as per IS codes) Color : As per requirement (customizable options available) Material : Other , High Quality Mild Steel Structural Sections (IS 2062 grade or equivalent) Use : Other, Industrial, Warehouses, Factories, Workshops, Logistics, Storage Roof Live Load : 0.57 1.5 kN/m2 Connection : Bolted and Welded Connection with HighStrength Bolts Door : Other, Roller Shutter, Sliding, or Swing Doors

Send Inquiry

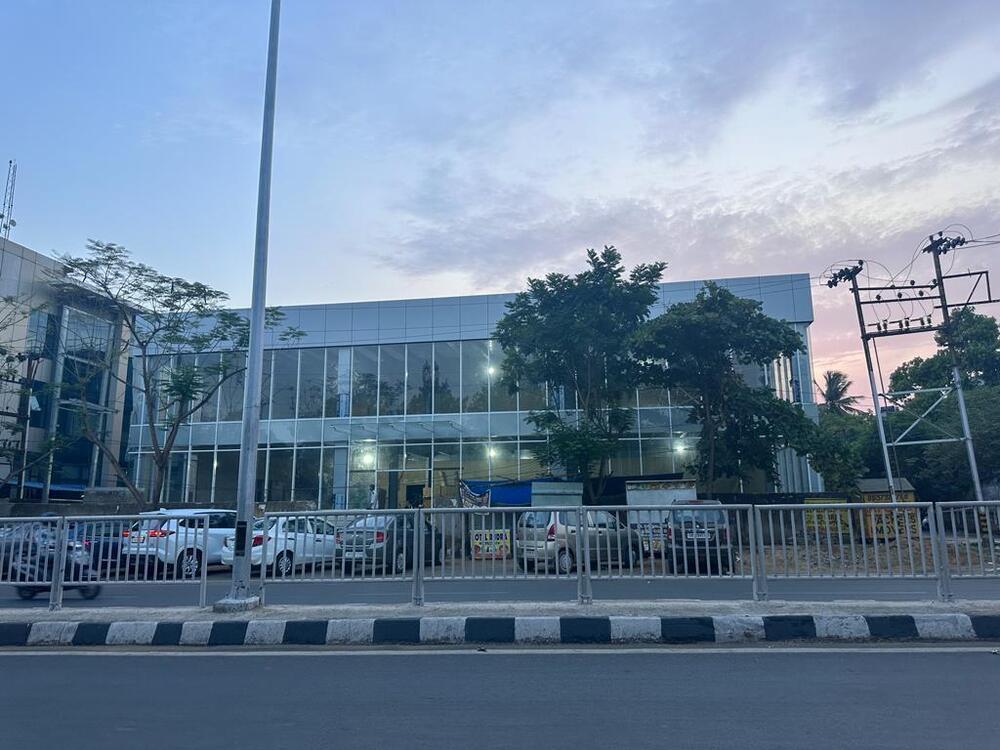

Industrial Pre-Engineered Steel Building Minimum Order Quantity : 100 Window Material : Other, Aluminum Framed Glass or UPVC Thickness Of Wall Panel : 50150 mm (depending on insulation and design) Floor Load : Designed as per industrial standards (typically 35 kN/m2) Roof Dead Load : 0.51.0 kN/m2 Window : Other, Double/Single Glazed, Fixed or Operable Floor Material : Reinforced Concrete or Steel Decking Roof Material : Other, Galvanized Steel Sheets or Sandwich Panels Wall Materials : Other, Steel Panels or Insulated Sandwich Panels Open Style : Other, Swing, Sliding, or Rolling Window Style : Other, Sliding or Fixed Door Material : Other, Steel or Aluminum Insulation : Other, PUF, Rockwool, or Glasswool Insulation Optional Dimension (L*W*H) : As per client requirement (Customisable) Life Span : 2550 Years Earthquake Intensity : Designed as per applicable seismic codes Color : Standard or Customized as per requirement Material : Other , Highstrength Structural Steel Use : Other, Industrial, Warehousing, or Commercial operations Roof Live Load : 0.51.5 kN/m2 Connection : Bolted Connection, Welded in specific sections Door : Other, Manual or Motorized
