Steel Fabrication Structure

Get a Price/Quote

Product Details:

Wall Materials Steel Sheet Cladding & Insulated Sandwich Panels
Insulation PUF/EPS/Glass Wool as Required
Open Style Sliding or Hinged (as per requirement)
Life Span 25-50 Years
Dimension (L*W*H) Customized as per design specifications (example: 30m x 20m x 10m)
Door Material Steel/Metal
Connection Bolted and Welded Joints
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Steel Fabrication Structure Price And Quantity

Minimum Order Quantity 100 Square Feet

Steel Fabrication Structure Product Specifications

Door Industrial Grade Steel Doors
Roof Dead Load Approx. 0.5-1.5 kN/m2
Connection Bolted and Welded Joints
Window Style Fixed or Sliding
Window Material Aluminum or Steel Frame with Glass
Use Industrial Warehouse/Factory Building
Door Material Steel/Metal
Dimension (L*W*H) Customized as per design specifications (example: 30m x 20m x 10m)
Earthquake Intensity Up to Seismic Zone IV
Roof Live Load 0.57 kN/m2 (minimum standard)
Thickness Of Wall Panel 50mm - 120mm (Sandwich panels)
Floor Load Designed as per industrial requirements, typically 2-5 kN/m2
Open Style Sliding or Hinged (as per requirement)
Roof Material Corrugated Steel Sheets with Insulation
Insulation PUF/EPS/Glass Wool as Required
Material Mild Steel (MS) / High Tensile Steel
Life Span 25-50 Years
Window Multiple units, evenly distributed, single/double glazed
Color Blue (Structural Frames); Exterior Walls: Silver/Grey
Wall Materials Steel Sheet Cladding & Insulated Sandwich Panels
Floor Material Reinforced Concrete or Industrial Grade Concrete

Lighting Skylight Sheets/Windows/Provision for LED Fixtures
Column and Beam Coating Anti-corrosive Epoxy/Paint
Fire Resistance Available as per required Standards
Maintenance Low, Periodic Painting and Inspection
Transport and Packing Knockdown/Prefabricated for Easy Assembly
Installation Time Fast-track, depends on size; typically 30-60 days
Eave Height Approx. 6-10 meters (customizable)
Ventilation Natural Louvered Openings and Industrial Roof Ventilators
Frame Type Rigid Portal Frame Structure
Purlin Material Galvanized Steel
Surface Treatment Primer + Two coat synthetic enamel paint
Foundation Type RCC Pad Footings

Steel Fabrication Structure Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Square Feet Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Introducing an imposing steel fabrication structure, built with grand precision using scarce, premium galvanized steel and impeccable anti-corrosive coatings. Its rigid portal frame, robust RCC pad footings, and industrial-grade finishes ensure enduring strength and effortless elegance for factories or warehouses. Benefit from a price cut-try now for superior safety with fire resistance and seismic robustness up to Zone IV. Fast-track installation and comprehensive customizations reinforce market value, promising a long life span with minimal maintenance and quick knockdown assembly. The time to act is now!

Key Features and Commercial Applications of Steel Fabrication Structures

Steel fabrication structures offer an impeccable blend of durability and versatility. Featuring rigid portal frames, anti-corrosive coatings, and customizable dimensions, these structures are ideal for industrial warehouses and manufacturing units. With natural ventilation, energy-efficient skylight provisions, and seismic resilience, they serve a multitude of commercial sectors-logistics, automotive, textiles, and food processing. Their low maintenance demands and rapid on-site installation further enhance their value for high-demand industrial operations across India.

Export Market Reach and Delivery Details for Steel Structures

Our steel fabrication structures command a grand presence in key export markets like the Middle East, Africa, and Southeast Asia, ensuring excellent market value for international clients. Products are shipped from leading Indian FOB Ports, drop-off coordinated for accessible handover. Each unit is knockdown packed, ensuring it arrives ready for swift on-site assembly. Careful packaging secures all structural elements, making international delivery reliable and efficient for commercial and industrial buyers.

FAQ's of Steel Fabrication Structure:

Q: How can I benefit from using a galvanized steel fabrication structure for my industrial facility?

A: Galvanized steel fabrication structures provide grand durability, corrosion resistance, and seismic resilience, ensuring prolonged lifespan, minimized maintenance, and robust safety for industrial warehouses or factories.

Q: What is the typical installation process and timeline for this steel structure?

A: The structure is shipped prefabricated or knockdown for quick on-site assembly. Installation time varies by size but often ranges between 30 to 60 days, allowing fast-track project completion.

Q: When and where are these steel structures most commonly used?

A: These imposing steel structures are commonly used in industrial settings such as warehouses, factories, logistics centers, and manufacturing facilities, especially where durability and rapid installation are priorities.

Q: What materials and coatings are applied to protect the structure against harsh environments?

A: Columns and beams are treated with anti-corrosive epoxy or paint, over a primer and two synthetic enamel coats, providing impeccable protection against rust and environmental impact.

Q: How does the design accommodate fire safety and earthquake resistance?

A: The structure can be provided with fire-resistant materials meeting required standards and is engineered to withstand seismic events up to Zone IV, ensuring high safety and compliance with relevant codes.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Prefabricated Structure' category

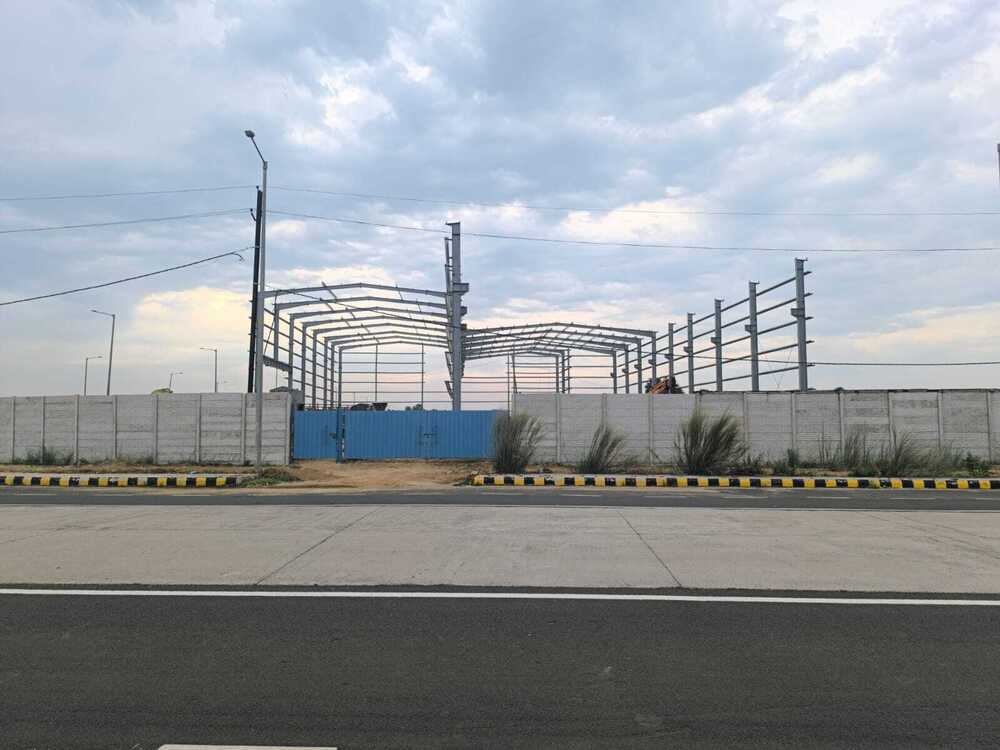

Pre-Engineered Building Structure Minimum Order Quantity : 100 Life Span : 25+ Years Roof Material : Other, Galvanized Steel Sheet Open Style : Other, Rolling/Shutter/Sliding Floor Load : 510 kN/m2 (typical, can be customized) Roof Live Load : 0.6 kN/m2 (standard) Thickness Of Wall Panel : 0.4~0.6mm (steel skin) with insulation core Insulation : Other, Rock wool/Glass wool/Puf panel Material : Other , Mild Steel/PreGalvanized Steel Color : Available as per requirement (standard Blue/Grey) Floor Material : Concrete Wall Materials : Other, Insulated Sandwich Panels/Steel Sheets Window : Other, Fixed/Pivot/Sliding Window Material : Other, Aluminum/UPVC Connection : Bolted & Welded connection Window Style : Other, Fixed/Sliding Door Material : Other, Steel Use : Other, Industrial/Commercial/Warehouse Door : Other, Single/Doubleleaf, Rollup Roof Dead Load : 0.51.0 kN/m2 (standard) Earthquake Intensity : Designed as per local codes (Zone III/IV/V) Dimension (L*W*H) : Customizable (Example shown: Approx. 40m x 20m x 10m)
