Pre-Engineered Building Structure

Get a Price/Quote

Product Details:

Door Material Steel
Insulation Rock wool/Glass wool/Puf panel
Wall Materials Insulated Sandwich Panels/Steel Sheets
Dimension (L*W*H) Customizable (Example shown: Approx. 40m x 20m x 10m)
Connection Bolted & Welded connection
Open Style Rolling/Shutter/Sliding
Window Material Aluminum/UPVC
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Pre-Engineered Building Structure Price And Quantity

Minimum Order Quantity 100 Square Feet

Pre-Engineered Building Structure Product Specifications

Window Style Fixed/Sliding
Thickness Of Wall Panel 0.4~0.6mm (steel skin) with insulation core
Color Available as per requirement (standard Blue/Grey)
Wall Materials Insulated Sandwich Panels/Steel Sheets
Window Material Aluminum/UPVC
Use Industrial/Commercial/Warehouse
Insulation Rock wool/Glass wool/Puf panel
Earthquake Intensity Designed as per local codes (Zone III/IV/V)
Roof Live Load 0.6 kN/m2 (standard)
Roof Material Galvanized Steel Sheet
Roof Dead Load 0.5-1.0 kN/m2 (standard)
Window Fixed/Pivot/Sliding
Door Material Steel
Open Style Rolling/Shutter/Sliding
Dimension (L*W*H) Customizable (Example shown: Approx. 40m x 20m x 10m)
Door Single/Double-leaf, Roll-up
Connection Bolted & Welded connection
Floor Material Concrete
Material Mild Steel/Pre-Galvanized Steel
Life Span 25+ Years
Floor Load 5-10 kN/m2 (typical, can be customized)

Wind Resistance Designed up to 180 km/h as per IS Codes
Frame Type Rigid Frame / Portal Frame Structure
Cladding System Single Skin/Double Skin with Insulation
Paint & Coating Epoxy Primer + Polyurethane Paint
Eave Height Customizable, standard range 6m-12m
Column & Rafter Hot Rolled/Cold Formed Steel Sections
Fasteners High Tensile Bolts/Nuts & Self-Drilling Screws
Ventilation Turbo Ventilators (optional)
Purlins & Girts Cold-formed C/Z Sections
Gutter & Downspout Pre-Painted GI Sheet / PVC
Fire Resistance Can be upgraded as per requirement
Corrosion Resistance Hot-dip galvanized/Pre-painted Steel
Thermal Conductivity Customizable with insulation panel type
Span Capacity Up to 60 meters (clear span)

Pre-Engineered Building Structure Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 5000 Square Feet Per Month
Delivery Time 7 Days
Main Domestic Market All India

Product Description

Experience the flawless engineering of our Pre-Engineered Building Structures - a must-have for industrial, commercial, and warehouse spaces. These heroic structures feature robust rigid/portal frames, crafted from hot rolled or cold-formed steel, and polished with epoxy primer plus polyurethane paint for outstanding durability. Limited stock with markdown pricing now available! With customizable dimensions and a clear span up to 60 meters, every detail is designed for strength and resilience. Enjoy corrosion resistance, superior fire and wind performance, and exceptional longevity - over 25 years of dependable service. Secure yours today before stock runs out!

Versatile Deployment & Seamless Application

Our pre-engineered structures can be installed across diverse sites including factories, warehouses, showrooms, and logistics terminals. The application involves swift bolted and welded connection methods, minimizing on-site labor and downtime. Designed for specific usage such as industrial, commercial, and warehousing needs, every building is fabricated to match your operational requirements, ensuring a perfect fit every time.

Global Delivery & Thoughtful Packaging Solutions

We serve a broad export market with buildings dispatched promptly to international clients. The outlay is transparent and competitive, with structures packed carefully to prevent transit damage. Upon arrival, our products are easily assembled, and we provide sample policies to assist your decision-making. Whether to local or global destinations, each shipment is tracked for safe and timely arrival at your site.

FAQ's of Pre-Engineered Building Structure:

Q: How is the pre-engineered building structure installed at the site?

A: The structure is assembled using a combination of bolted and welded connections, facilitating quick installation and reducing site labor. Detailed manuals and expert support are provided to ensure a seamless installation process.

Q: What are the primary applications of this pre-engineered building?

A: These structures are ideal for industrial, commercial, and warehouse uses, and can also be customized for showrooms, logistics hubs, and factories, meeting specific operational needs.

Q: When can I expect delivery after placing an order?

A: Once your order is confirmed and specifications are finalized, dispatch generally occurs within a few weeks. Delivery timelines vary based on destination and customization requirements.

Q: Where can these building structures be deployed?

A: They are suitable for a wide range of locations, including both rural and urban sites, thanks to customizable foundation engineering and adaptable design features.

Q: What are the benefits of using hot-dip galvanized or pre-painted steel?

A: These materials offer enhanced corrosion resistance, ensuring longevity and reduced maintenance costs, especially in challenging environments.

Q: How can I customize insulation and energy efficiency features?

A: Insulation options such as rock wool, glass wool, or PUF panels are available. You can select cladding types, wall/roof thickness, and panel types to achieve desired thermal conductivity.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Prefabricated Structure' category

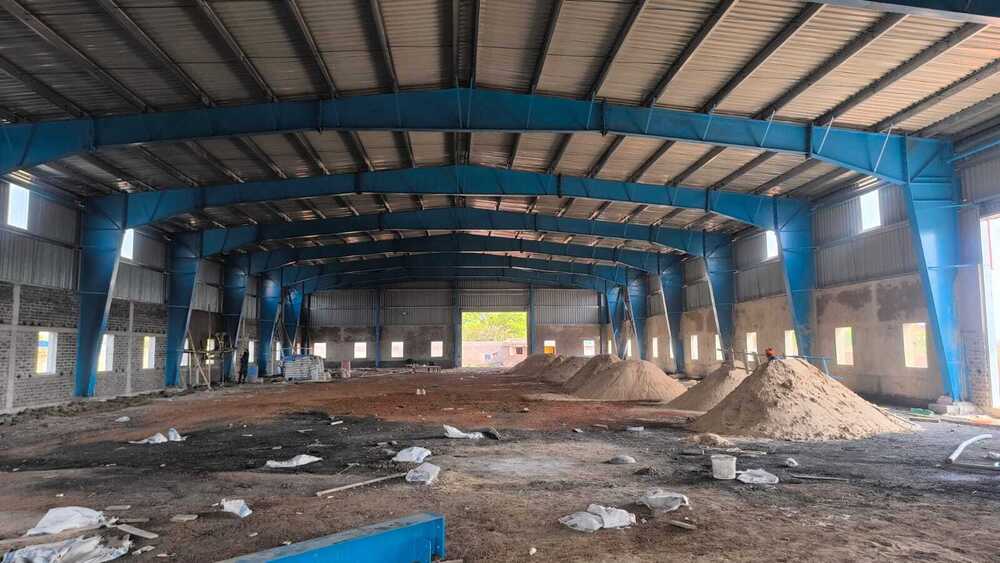

Steel Fabrication Structure Minimum Order Quantity : 100 Roof Material : Other, Corrugated Steel Sheets with Insulation Roof Dead Load : Approx. 0.51.5 kN/m2 Window : Other, Multiple units, evenly distributed, single/double glazed Open Style : Other, Sliding or Hinged (as per requirement) Door Material : Other, Steel/Metal Earthquake Intensity : Up to Seismic Zone IV Roof Live Load : 0.57 kN/m2 (minimum standard) Window Material : Other, Aluminum or Steel Frame with Glass Use : Other, Industrial Warehouse/Factory Building Insulation : Other, PUF/EPS/Glass Wool as Required Window Style : Other, Fixed or Sliding Thickness Of Wall Panel : 50mm 120mm (Sandwich panels) Color : Blue (Structural Frames); Exterior Walls: Silver/Grey Wall Materials : Other, Steel Sheet Cladding & Insulated Sandwich Panels Life Span : 2550 Years Floor Load : Designed as per industrial requirements, typically 25 kN/m2 Floor Material : Reinforced Concrete or Industrial Grade Concrete Material : Other , Mild Steel (MS) / High Tensile Steel Dimension (L*W*H) : Customized as per design specifications (example: 30m x 20m x 10m) Door : Other, Industrial Grade Steel Doors Connection : Bolted and Welded Joints

Send Inquiry

Commercial Mild Steel PEB Shade Structure Minimum Order Quantity : 100 Roof Material : Other, Color Coated Mild Steel Sheets Roof Dead Load : 2035 kg/m2 (approximate, based on profile) Window : Other, Provision for Fixed and Sliding Windows Open Style : Other, Sliding and Hinged Door Material : Other, Mild Steel Earthquake Intensity : Zoneappropriate Construction as per IS Codes Roof Live Load : 0.751.5 kN/m2 (as per IS875) Window Material : Other, Aluminum/Steel Frame Glass Use : Other, Commercial/Industrial Shade Structure Insulation : Other, Optional PUF/Glasswool/Sandwich Panel Window Style : Other, Fixed and Sliding Thickness Of Wall Panel : 0.5 mm to 1.5 mm (sheet metal profile) Color : Blue, White, Grey (customizable) Wall Materials : Other, Profiled Mild Steel Panels with Masonry base Life Span : 2530 years (with proper maintenance) Floor Load : Designed as per industrial standards (customizable) Floor Material : Reinforced Concrete Material : Other , Commercial Grade Mild Steel Dimension (L*W*H) : Customizable as per requirement, example shown approx. 35x20x12 ft Door : Other, Multiple IndustrialGrade Doors Connection : Bolted/Welded Mild Steel Joints

Send Inquiry

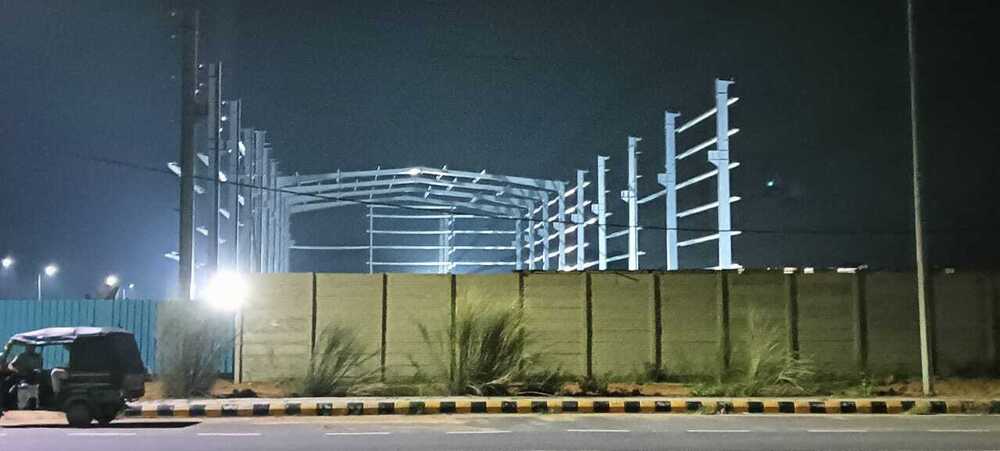

Pre-Fabricated Warehouse Structure Minimum Order Quantity : 100 Roof Material : Other, Prepainted Galvanized Iron (PPGI) Sheets or Sandwich Panels Roof Dead Load : 0.51.0 kN/m2 (Typical) Window : Other, Sliding, Fixed, Louvered Open Style : Other, Swing, Sliding or Customized Door Material : Other, Steel or Aluminum Earthquake Intensity : Designed As Per IS Codes or Specified Seismic Zone Roof Live Load : 0.51.5 kN/m2 Window Material : Other, Aluminum or UPVC Use : Other, Warehouse, Industrial Storage Insulation : Other, PUF, Rockwool or Glasswool Window Style : Other, Fixed, Sliding or Customized Thickness Of Wall Panel : 50mm to 100mm (Depending On Insulation) Color : Standard Grey, Blue or As Per Requirement Wall Materials : Other, Steel Sheets / Sandwich Panels Life Span : 2050 Years Depending On Maintenance Floor Load : Heavy Duty Suitable For Warehousing Floor Material : Concrete or Polished Concrete Material : Other , High Quality Structural Steel (e.g. IS 2062 Grade) Dimension (L*W*H) : Customized As Per Project (e.g. 40m x 20m x 10m) Door : Other, Manual/Automatic Shutter or Hinged Doors Connection : Bolted & Welded Joints
